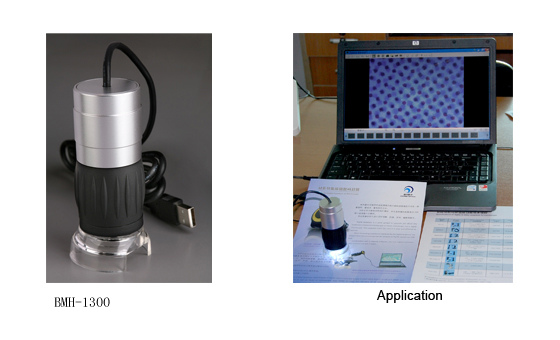

SM30300 1.3MP Hand USB Microscope







To equip 1.3MP sensor and offers full screen display, the design of double deck of IC board reduces noise of images, the 8 LED lights ring with special parameter supports RGB true color.









Features

Low magnification
1X---40X
High magnification
200X
Working distance
5.00 mm---∞
Lighting source
8 LED light ring
Focusing
Hand-wheel and twin screw track
Function of software
Image management: to set up, to open up, to save, and to lead in image file
Image capture: to switch, to set, to shoot, to video.
Image edit: picture turn, zoom, cut, modify, email, print
Resolution of display
1280*1024
Resolution of picture
1280*1024
Resolution of video
1280*1024
USB cable
1.5 m
Weight of device
0.12kg




Specification：

Sensor parameter
1/4” 1.3Mega Pixels CMOS
Active Pixels
1280*1024
USB port
USB 2.0
Frame Rate
16 f/s @ 1280*1024
Preview Model
1280*1024,640*480, 320*240，
Dynamic Range
71dB
Sensitivity
1.0V/lux-sec@550nm
Spectrum response
400nm---1000nm
Shutter Type
ERS(electronic rolling shutter)
White Balance
Auto
Operating System
Windows XP, Vista




Packing message:
1. Single box：Weight: 0.211kg，Measurement: 3.65*3.65*5.0 cu cm
2. One carton of 40PCS: Weight: 9.10 kg, Measurement: 57.0*30.0*28.0cu cm
