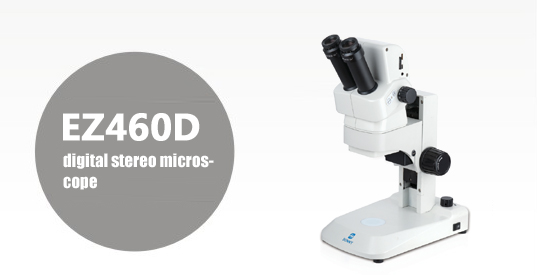

SM30303 EZ460D Digital Zoom Stereo Mcroscope

This microscope is designed to be used in education.

■ New optical system offers high quality 1：4.4 zoom ratio(0.8x~3.5x
   zoom range),providing highly resolved images.
■ Integrated 5.0 mega-pixel 1/2.5 inch CMOS camera ,resolution of 2592*
   1944
■ Thin film style photo button, imagings can be recorded and saved timely
   in SD card.maximum storage reach 8G.
■ With HDMI ,AV, USB2.0 output interface. For defrient applications such
   as high definition output ,standard video and projection.
   wrong operation.

Specifications


Magnification
8X-35X
Eyepiece
High eye point wide filed WF10TX22mm eyepiece with diopter control
High eye point wide filed WF15TX16mm eyepiece with diopter control
High eye point wide filed WF20TX12mm eyepiece with diopter control
Digital viewing head
Binocular head , 60°inclined，interpupillary distance 50mm-75mm，build-in interlocking mechanism.
Zoom objective:0.8X-3.5X，working distance:95mm
All in one adjustment stand,adjustment range: 92mm，with tension control
Top & bottom single 5W LED lamp with tension adjustment, separate control system realize both of light on at the same time.light’s angle adjustable.
Self- adapte 100V-240V input
Integrated 5.0 mega-pixel COMS camera system with SD card slots and thin film style photo button. Images output: USB2.0 ,RCA ,VIDEO, Composite video
Storage card
Kingston 2G SD card
