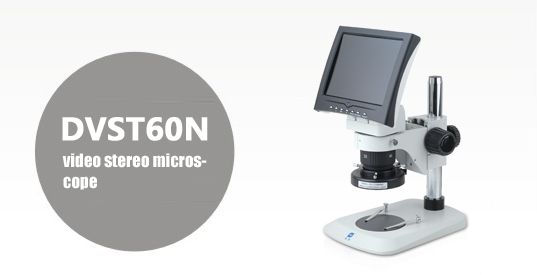

SM30304 DVST60N digital stereo microscope
ST60N adopt new optics design, improve the definition of image, better resolution and better contrast. Efficient reduce the user’s fatigue, improve comfort level and operation efficiency.
Innovative integration of video design, it liberates the user’s eyes, inspection directly through LCD screen, no longer to let the eyes close to the eyepiece.
■Shift objectives 1X/3X、2X/4X、1X/2X、1X/4X for option.
■Standard magnification 20X/40X, if use auxiliary lens and other times eyepiece, the magnification range can be 5X ~ 160X
■Standard working distance is 100mm, to create enough space for the uses
■10X large wide field eyepieces, FOV 20mm, plan and high eye-point design, more suitable for search and observation.
■Observation head 45 ° inclined, diopter adjustment in two tubes, easy to operate and feel no fatigue when long time use
■Ergonomics design, shift hand wheel level (axial) bilateral settings, high repeatability precision
Parameters of CCD
|
Imaging component size
|
1/3 inch
|
1/3 inch
|
|
Vertical resolution
|
480 TV line
|
480 TV line
|
|
Pixel
|
768（H）X490（V）
|
768（H）X576（V）
|
|
Scanning system
|
525 line，60 frame/sec
|
625 line，60 frame/sec
|
|
White balance
|
Switch between automatic balance and manual balance
|
|
|
Compensation
|
Automatic
|
|
|
Signal noise ratio
|
46db
|
|
|
γcharacter
|
0.45
|
|
|
Minimum illumination
|
3.1ux
|
|
|
Input voltage
|
12V DC(9V-14V)
|
|
|
Power consumption
|
Below 1.85W
|
|
Specifications
|
Magnification
|
Standard:20X/40X, using optional eyepiece and auxiliary lens, it can extend to 5X~160X
|
|
Objective
|
1X、2X、3X、4X
|
|
Viewing Head
|
LCD head,8 inch LCD screen, resolution 800*600,CCD 520 TVLINES
|
|
Working Distance
|
Standard:100mm, using optional auxiliary lens can expand to 30mm-165mm
|
|
Auxiliary Lens
|
0.5X/165mm、0.75X/105mm、1.5X/45mm、2X/30mm
|
|
Focus arm
|
tension adjustable, adjust range 50mm
|
|
Stand
|
Pillar type sector stand
|
|
Pillar stand with top & bottom illumination. Bottom illuminator: halogen bulb 12V15W( brightness adjustment )， Oblique lighting 12V/15W
|
|
|
Pillar stand with top & bottom illumination. Bottom illuminator: fluorescent bulb 230V/8W ， Oblique lighting 12V/15W
|
|
|
Other type stand, ring light and fluorescent light and fiber light for option.
|
|
|
Others
|
Precision measurement platform, dark field condenser, jewelry clip
|
|
