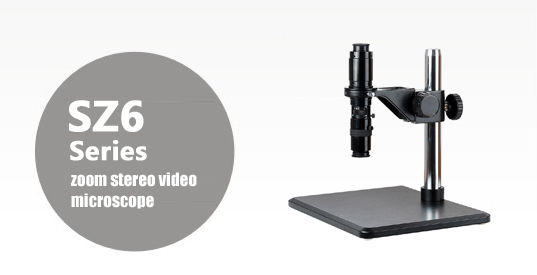

SM30305 DVSZ6 digital zoom stereo lens



Design for the applications in the fields of machine vision, industrial inspection and scientific research.
Modularization product portfolio, excellent optical performance, SZ6 becomes a better choice for the lens applications in these areas.

■ Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
■ Adopt semi-apochromatic parallel optical imaging system, and use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view, to get high-resolution and high contrast images, naturally restore the true colors of observed objects.
■ Zoom ratio 1:6.5，zoom range 0.7X-4.5X，standard working distance 90mm，resolution ratio 63-180lp/mm，to meet the requirement of machine vision conventional imaging.
■ There are a variety of auxiliary lens and CCD for option, make the system’s maximum magnification up to 0.09X-18X, working distance 37mm-356mm, object field of view 0.23mm-91mm
■ Coaxial illumination system, adopt single high brightness 1W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection, and limited exterior lighting occasions
■ Various additional functions for option.

Specifications


Zoom lens
SZ6D zoom objective:0.7-4.5X
SZ6DF12 zoom objective:0.7-4.5X,with 12mm fine adjustment
SZ6CHI zoom objective:0.7-4.5X,with coaxial light interface
SZ6DP zoom objective:0.7-4.5X, with main ratio positioning mechanism
SZ6CHIP zoom objective:0.7-4.5X, with main ratio positioning mechanism and coaxial light interface
SZ6DF3P zoom objective:0.7-4.5X, with main ratio positioning mechanism and 3mm fine adjustment
SZ6DF12P zoom objective:0.7-4.5X, with main ratio positioning mechanism and 12mm fine adjustment
SZ6DMOT zoom objective:0.7-4.5X, motor-driven zoom
SZ6CHIMOT zoom objective:0.7-4.5X, motor-driven zoom, with coaxial light interface
LCD module
DVSZ6：8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES，can mount on any zoom lens
Auxiliary lens
0.25X /356mm
0.5X /170mm
0.75X /113mm
1X /90mm
1.5X /52mm
2X /37mm
C-mount adapter
0.5X C-mount adapter
0.67X C-mount adapter
1X C-mount adapter
1X C-mount adapter（fixed）
1.33X C-mount adapter
2X C-mount adapter
Coaxial light
Light source: single LED 1W 5500K
Wide-range voltage 90V-250V,1W LED controller, brightness adjustment
Motor control module
Motor monocular control panel
Control software disk
USB2.0 connecting line
Stand and focus arm
B4 Pillar type plain stand
Focus arm
Adapter for focus arm
