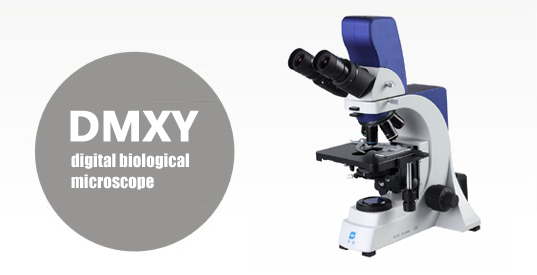

SM30307 DMXY digital biological microscope



The system combined traditional microscopy education with modern network technology and multi-media technique. With high-quality “SUNNY” microscopes, server and computers, an interactive multi-media audio bilateral network system was founded. It shows several clear pictures at the same time and has a lot of methods to realize interaction.

■     Clinical, laboratory biological microscope, color corrected infinity optical system (CSIS), high resolution and high contrast image
■     New design plan wide field of view eyepiece, eliminate edge chromatic aberration.
■     “Y” configuration body, steady and reliable.
■     Ergonomics design, low position coaxial focus adjustment, stage movement and illumination adjustment.
■     Complete accessories, more extension functions, enable various observation, bright-field, dark-field, fluorescence and polarized observations.

Specifications


Optical system
Color corrected infinity optical system
Head
Digital gemel head, 300 inclined (1/2.5CMOS, 3M or 5M pixels). High-definition picture sensor chip. Automatic exposure and white balance function.USB2.0 digital output. Display 90% image from field of view
Eyepiece
PL10X22mm high eye-point plan eyepiece

PL15X16mm high eye-point plan eyepiece
Objective
Infinity plan achromatic objective: 4X、10X、20X、40XS、100XSO
Nosepiece
Reversed quintuple nosepiece
Focus system
Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment and height limit
Mechanical stage
Double layer mechanical stage 175×145mm, dismountable, special surface treatment, 76mmX50mm moving range, 0.1mm precision, specimen holder for two slides.
Condenser
N.A.1.2/0.22 swing out achromatic condenser, iris diaphragm with scale indication
Illuminator
Kohler illumination, 90-240V wide voltage, 6V/30W halogen bulb, center presetting, brightness adjustable.
Photo attachment
Photo tube(with PK adaptor), 3.2X lens
Video attachment
0.35X/0.5X/0.67X/1.0X C mount adaptor
Other optional functions
Professional phase contrast ( use phase contrast objective and phase contrast condenser0
Professional fluorescence (use special fluorescence objective, illuminator and accessory)
Darkfield condenser
Simple polarization accessory
