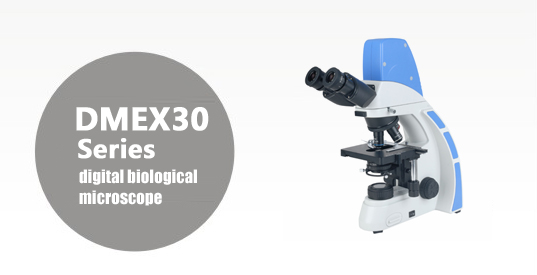

SM30309 DMEX30 digital biological microscope



The system combined traditional microscopy education with modern network technology and multi-media technique. With high-quality “SUNNY” microscopes, server and computers, an interactive multi-media audio bilateral network system was founded. It shows several clear pictures at the same time and has a lot of methods to realize interaction.

■ The new EX30 series is designed to be used in biomedicine university,labo-
   ratory as well as a variety of biological applications
■ It is much different with tradition microscope in design style.which is full of n-
   ew ideas.
■ It is designed along the guidelines such as stable , use comfortably ,safety
   and efficient . Let you enjoy the microscopy get through the simply and conv-
   eniently structural design.
■ This microscope can also be used with many accessories to realize bright f-
   ield, dark field ,simple polarization , phase contrast…etc. microscopy. Help y-
   ou in all kinds of detection and analysis.According to user’s needs, we still c-
   an supply the prefessional phase contrast and fluorescent devices.

Specifications

Optical system
Infinity achromatic optical system
Observation tube
30°gemel digital viewing head, 3.2 million pixels high resolution camera system：resolution ratio 2048*1536 pixels ,line by line scan
Automatic exposure and white balance function.USB2.0 digital output. Display 90% image from field of view
Eyepiece
High eye-point widefield plan eyepiece PL10X20mm with ±5 degrees diopter control
High eye-point widefield plan eyepiece PL10X22mm with ±5 degrees diopter control
Objective
Infinity plan achromatic objective 4X、10X、20X、40XS、100XSO
nosepiece
Quadruple backward nosepiece
Quintuple backward nosepiece
Focusing adjustment
Coaxial coarse and fine focusing adjustment with tension and up limited adjustment device.
coarse adjustment range: 30mm，fine adjustment precision：0.002mm
Stage
Coaxial ,low position mechanical stage in 150x140mm size and 76x50mm travel range.with double damping clips.
Condenser
Koehler N.A.1.25 condenser(with socket for phase contrast and dark field sliders)
Illuminator
Main supply 100V-240V,single 3 watt LED lamp with intensity control(fixed center)
Main supply 100V-240V, philips 6V/30W halogen lamp with intensity control(fixed center)
Photography adapter
3.2X photo eyepiece ,photo tube (with PK mount)
Video adapter
0.35X CTV
0.5X CTV
1.0X CTV
Other options
Turret or slider style phase contrast device（use with the phase contrast objectives）
Profesional fluorescence
Dark field sliders
Simple polarization
