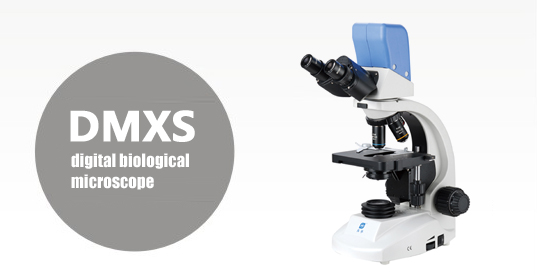

SM30312 DMXS digital biological microscope



The system combined traditional microscopy education with modern network technology and multi-media technique. With high-quality “SUNNY” microscopes, server and computers, an interactive multi-media audio bilateral network system was founded. It shows several clear pictures at the same time and has a lot of methods to realize interaction.

■ Achromatic aberration eyepiece and objective
■ Good quality image,higer resolution ratio,wide clear range
■ Ergonomic design with low position adjustment
■ Provide high quality optical system and durable and reliable operation
   mechanism; cost-effective
■ This microscope can be used in teaching and laboratory in colleges and
   university,as well as R＆D institution.

Specifications

Observation tube
30°gemel digital viewing head, 3.2 million pixels high resolution camera system：resolution ratio 2048*1536 pixels ,line by line scan
Automatic exposure and white balance function.USB2.0 digital output. Display 90% image from field of view
Eyepiece
wide field eyepiece WF10X/18，（option pointer and micrometer）
WF15X/13mm，WF20X/10mm
Objective
Plan achromatic 4X、10X、20X、40XS、100XSO
Infinity plan achromatic 4X、10X、20X、40XS、100XSO
Nosepiece
Quadruple backward nosepiece
Focusing adjustment
Low position coaxial coarse and fine focusing adjustment with up limited and tension adjustment. coarse adjustment range: 22mm，fine adjustment precision：0.002mm
Stage
Coaxial mechanical stage in 140X132mm size and 76x50mm travel range
Condenser
NA1.2/0.24 wing-out achromatic condenser
Illuminator
Mail supply 100-240V，6V20W philips halogen lamp with intensity control
Photography adapter
3.2x photo eyepiece ,photo tube（with PK mount）
Video adapter
0.35X CTV/0.5X CTV
Other option
phase contrast objective and condenser
Dark field condenser
Simple polarization
