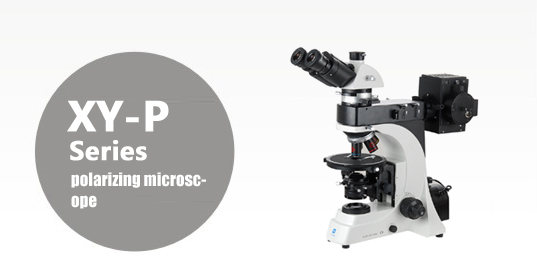

SM30341 XY-P series Polarizing Microscope



Provide superior optical system and reliable operating mechanism
Clear image, easy operating, widely used in component analysis and identification on a variety of mineral specimens and sample slices under polarized light.






Optical system
Color corrected infinity optical system（CSIS）
Viewing head
Infinity gemel type binocular head, 30°inclined, 360° rotatable, inter-pupillary adjustment range:54mm to 76mm, diopter adjustment of range(±5mm)
Infinity gemel type trinocular head，light split ratio：binocular100%，binoculaar:trinocular=50%:50%
Infinity digital head, 3 mega. pixels
Eyepiece
High eyepoint wide field plan eyepiece PL10X/22、High eyepoint wide field plan eyepiecewith reticle PL10X/22R
High eyepoint wide field plan eyepiece with gridding PL10X/22G
High eyepoint wide field plan eyepiece with diopter adjustment PL10X/22T
High eyepoint wide field plan eyepiece PL15X/16
Objective
Transmission: Infinity plan destressing objective 4X,10X,20X,40XS, 60XS, 100XS（oil）
Transmission & reflection：Long working distance infinity plan destressing objective 5X,10X,20X, 50XS,100X
Nosepiece
Reversed quadruple nosepiece(center adjustable and with objective center control wrench)
Focus
Coaxial focus system with tension adjustable and limited stopper,coarse range 28mm,fine precision 0.002mm
Stage
Dia.160mm circular stage, 360°rotatable;1° increments ，a does value of vemier 6'; with locking devices. The stage is through particularly fabrication processing(graphite flame plating),wear-resistant and anti-corrosion, with clips and micrometer(precision:0.01mm)
Illumination system
Transmission: Built-in Koehler illuminator systems, wide-range voltage 90-240V, 6V/30W halogen lamp, pre-centered, with continuous intensity control. Lamp filament’s center and focal length can be adjustable
Reflection: Reflection illuminator (with blue filter group), with field diaphragm and aperture diaphragm, 12V/50W halogen bulb, lamp filament’s center and focal length can be adjustable
Transmission & reflection:
Transmission: Built-in Koehler illuminator systems, wide-range voltage 90-240V, 12V/50W halogen bulb, lamp filament’s center and focal length can be adjustable;
Reflection: Reflection illuminator (with blue filter group), with field diaphragm and aperture diaphragm, 12V/50W halogen light house(R), lamp filament’s center and focal length can be adjustable
Condenser
Transmission N.A.1.2 swing achromatic condenser, pinion and rack go up and down
Transmission and reflection N.A.1.2 swing achromatic condenser, pinion and rack go up and down
Polarizer
Transmission :360°rotatable，0，90，180，270 four type graduations,with locking device and can shift out the light path
Reflection：built in reflected illuminator, fixed
Intermediate tube
Built-in analyser(can shift out the light path ), 90° rotary. Built-in Bertrand lens(canter and focal length can be adjustable)



■ This series microscope is a laboratorial polarizing microscope, for research and
   teaching
■ Long working distance infinity plan destressing objectives provide excellent image
   and high definition
■ Professional metal rotary stage, particularly craftwork,wear-resistant and resisting
   corrode
■ Smooth rotating, comfortable operation, with locking device, very easy to use
■ Shapely configuration, the inverted “Y” shape ensure the stability and rigidity

Specifications
