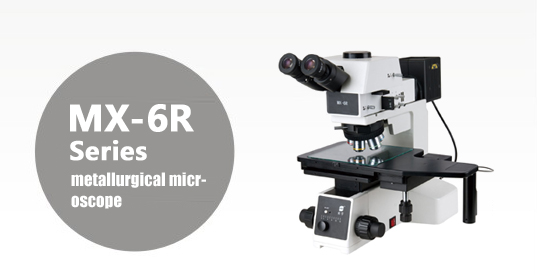

SG30350 MX-6R series Metallurgical Microscope



Flexible system, excellent imaging performance and stable system architecture.MX-6R series professional used in industrial testing and metallographic analysis.

■ The operating mechanism according to ergonomic design. That can maximum
   reduce fatigue during using. Modular component design can freely assemble.
■ MX-6R integrated bright-field,oblique illumination,polarizing, DIC differential interf-
   erence and other observed functions,according to the practical application of fun-
   ctional selection.



■ MX-6R can achieve X, Y directions 158mmx158mm range of movement.
   The new design of the long working distance professional metallurgical
   objective , high power objective designed with semi-apochromatic technology.
■ Under a variety of observation methods can be sharp and high-contrast microsco-
   pic image.accessories complete, well-equipped, the system can be flexibly
   combined with the functional expansion.
■ Ergonomic design, reliable system architecture.

MX-6R Specification：


Model
MX-6R
MX-6RT
Alternative method of observation
Bright field/Dark field/polarizing/DIC
Bright field/Dark field/polarizing/DIC / Transmission light
Optical system
Infinity color corrected optical system
Eyepiece
Hight eyepoint plan eyepiece PL10X/22
objective
LMPL-BD infinity LWD metallurgical objective (both brightfield and darkfield available)
Viewing head
Erect image ，25°gemel trinocular ，reflect rate，binocular：trinocular =100：0或0:100
Nosepiece
Reversed quintuple nosepiece, both brightfield and darkfield available ,with DIC slot
Reversed quintuple nosepiece, both brightfield and darkfield available
Stage
6”three ply mechanical stage，moving range158x 158mm，glass stage，right hand position X、Y moving wheel with clutch handle,can be moved fast
6” three ply mechanical stage，reflected moving range 158x 158mm，Transmission moving range：100x100mm，glass stage，right hand position X、Y moving wheel with clutch handle,can be moved fast
Body
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in  wide voltage 90V-240V, single power supply output
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in  wide voltage 90V-240V, dual power supply output
Reflective illumination System
With iris diaphragm and aperture diaphragm, both centers adjustable,with filter slot and polarizing device slot, switch rod with oblique lighting.12V100W halogen bulb，light intensity continuously adjustable
Transmission illumination system
/
Single high-power 5W LED, white, light intensity continuously adjustable. N.A.0.5 condenser with iris aperture diaphragm
