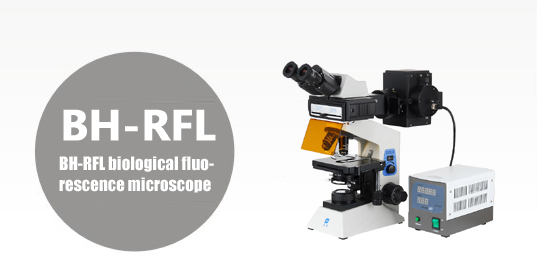

SM30363 BH-RFL biological fluorescence microscope



■ New chromatic correction optical system
■ Popularly and newly microscope body design
■ Higher level resolution ratio and image quality
■ Designed to be used in teaching applications,lab,demical, and sientific
   reserch

Spesifications


Optical system
Finity optical system/Infinity optical system
Observation tubes
Binocular head,inclined 30 degrees and rotating
Trinocular head with light splits 80%:20%
54-75mm interpupillary distance，±5 degrees diopter control
Eyepiece
PL10X/18mm, High eyepoint, widefield plan eyepiece
PL10X/20mm, High eyepoint, widefield plan eyepiece
Objective
Finity high contrast achromatic objective:4X、10X、40XS、100XSO
Finity plan achromatic objective:4X、10X、20X、40XS、100XSO
Infinity plan achromatic objective: 4X、10X、20X、40XS、100XSO
Nosepiece
Quadruple/quintuple with click stop
Focusing adjustment
Coaxial coarse and fine focusing adjustment, with limited and tension adjustment, coarse adjustment range: 28mm，fine adjustment precision：0.002mm
Stage
Low position coaxial mechanical stage,size:140x132mm travel range:76x50mm
Low position coaxial mechanical stage, size: 150x140mm travel range:76x50mm ,with two sets clips
Condenser system
Critical illumination, rack & Pinion focusable 1.25NA Condenser, fixed center
Koehler illumination, rack & Pinion focusable 1.25NA Condenser, adjustable center
Illuminator
Variable voltage 90V～240V，halogen 6V/20W with intensity control
Variable voltage 90V～240V， 3W LED lamp with intensity control
Photography adapter
3.2x photo eyepiece ,photo tube（with PK mount）
Video adapter
0.35X CTV/0.5X CTV/1.0X CTV
Other options
Phase contrast sliders for condenser（use with phase contrast objective）
Dark field slider for condenser
Simple polarization (with analyser and polarizer)
