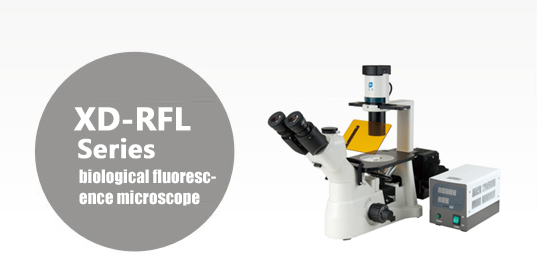

SM30364 XD-RFL series inverted fluorescence microscope

XD-RFL laboratory inverted fluorescence microscope, designed for cell culture observation, to get details of cell growing process, internal spontaneous fluorescence phenomenon, living cell fluorescence transfection, protein transfer and etc.

■ New generation of infinity color corrected optical systems and professional

plan semi-apochromatic fluorescence objectives, present you sharp and br-

ight fluorescence image.

■ Professional fluorescence filter system, imported optical material and broa-

dband multilayer coating, high transmissivity, mould proof, heat insulation a-

nd safety protection system, OSRAM brand mercury lam digital power-supply

control.

■ Swallow tail slide switch easy to change filter cubes, three paths for fluores-

cence and one for bright field, four filter cubes can be mounted. OMEGA bra-

nd professional fluorescence filter cubes achieve excellent performance

■ Scientific research class cold CCD, high resolution, fast transmission. Intell-

igence Chinese fluorescence image processing software, meets any requ-

est of the most professional picture processing.

■ 6V/30W transmission illuminator, various performances, bright-field, dark-fi-

led, phase contrast, polarization observations.

Specifications

Model	XD30-RFL	XD30A-RFL
Optical system	Color corrected infinity optical system
Head	Gemel trinocular head, 45⁰ inclined, interpupillary distance adjustment range 54-75mm, one eyepiece tube with ±5 diopter adjustment light splitting ratio: binocular 100%; binocular 0%/trinocular 100%
Eyepiece	PL10X22mm high eye-point plan eyepiece
Objective	Long working distance infinity plan fluorescence objective LWDPLF4X/0.13/WD18.52 LWDPLF10X/0.30/WD7.11 LWDPLF20X/0.45/WD5.91 LWDPLF40X/0.65/WD1.61 LWDPLF60X/0.75 /WD1.04
	Long working distance infinity plan fluorescence phase contrast objective LWDPLFPH20X/0.45WD5.91 LWDPLFPH40X/0.65WD1.61
Nosepiece	Quintuple nosepiece
Stage and accessories	160x250mm platform; Mechanical stage, move range 120x78mm; Extension plate; Glass stage; Metal stage with slot; Terasaki holder; Holder for φ35mm Tissue culture vessel.
Microscope body	Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment, built-in 90-240V wide voltage transformer.
Reflected fluorescence illumination system	XDRFA Kohler reflected illuminator, with iris field diaphragm, center adjustable
	U-LH100HG mercury lamp house, center and focus adjustable. With mirror, center and focus adjustable.
	U1-RFLT100 digital mercury power supply, 90-245VAC wide voltage
	OSRAM 100W DC mercury lamp
	Centring objective for mercury lamp
	OMEGA optical bandpass filter cubes：UV1/B1/G1
	30ND25 attenuation pad
Transmitted illumination system	Critical illumination, 6V/30W halogen bulb, center presetting, brightness adjustable. Iris aperture diaphragm.	Kohler illumination, 6V/30W halogen bulb, center and brightness adjustable. Iris aperture diaphragm and field diaphragm
	N.A.0.3 long working distance condenser, W.D.72mm,.	N.A.0.3 long working distance condenser, W.D.72mm, condenser stand can be shifted out from the light path
	LBD color temperature change filter, IF550 contrast green filter
Phase contrast accessories	φ30mm centring telescope
	XDSL type 10X-40X phase contrast slider, center adjustable	XDSL1 type 10X-40X phase contrast slider, center adjustable
CCD adaptor	0.67X C mount adaptor
Fluorescence filter	OMEGA brand Fluorescence filters, standard UV、V、B、G four cubes, can custom-made.
Camera	1.4M pixels cold CCD, 2/3”,
Software	Smart Cool fluorescence analysis software
