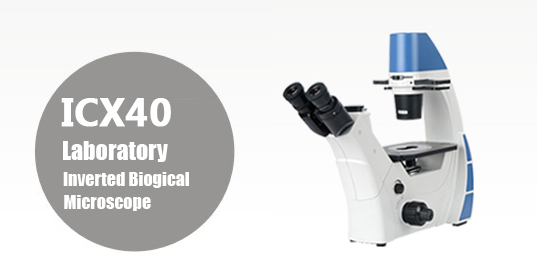

SM30356 ICX40 laboratory inverted biological microscope



■Infinity color corrected optical system with excellent optical performance, ma-
  kes the image clear and bright.
■Phase contrast with the characteristics of high-contrast and low chromatic, h-
  ighlights the cell outline and internal structure.
■efficient and compact appearance design, correspond ergonomics and save
  space for the   labs.
■high-precision focusing device and convenient illumination adjustment, help
  to achieve outstanding work.
■Delicate mechanical design and reliable manufacturing skills, insure its fabu-
  lous stability——even under an adverse condition, it can be used enduringly
  as your most reliable friend.

Specifications


Model
ICX40
Optical System
Infinity color corrected optical system
Eyepiece
High eye-point plan eyepiece PL10X/22, field of view: 22mm.
High eye-point plan eyepiece PL10X/22, field of view: 22mm, with reticle.
High eye-point plan eyepiece PL15X/16, field of view: 16mm
Objective
OLIPP2N long working distance plan positive phase contrast objective 4X、10X、20X、40X
Nosepiece
Revolving quintuple nosepiece（option: quadruple nosepiece）
Viewing Head
45°inclined gemel binocular head, interpupillary distance range: 54-75mm.
45°inclined gemel trinocular head, interpupillary distance range: 54-75mm. fixed splitting ratio for binocular: trinocular= 80:20.
Stage
Fixed stage size: 250x160mm, slider clips, extension plate and coaxial moveable stage can be assembled.
Focusing adjustment
Coaxial focus system with up-limited and tension adjustment.
Coarse range: 9mm, fine range: 0.2mm, fine precision: 0.002mm.
Attachable moveable stage
Coaxial focus system, range: 120x78mm, various of holders can be assembled.
Holder
Slides holder（φ54mm and 26.5x76.5mm）
Teraseki holder（φ65mm and 56x81.5mm）
φ35mm Petri dish holder
Condenser
N.A.0.3 Koehler illumination condenser, with phase-adjustable slide plate, long working distance 72mm. The whole set can be rotated down.
Filter
φ45mm green interference filter, color temperature change filter, infrared eliminate filter
Illumination
5W warm color LED，12V3.3A external transformer, intensity adjustable.
