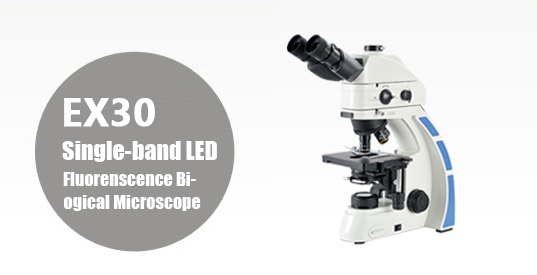

SM30362 EX30 single-band LED fluorescence biological microscope



EX30 single-band LED fluorescence biological microscope

■Infinity color corrected optical system with high quality   micro-technique pres-
  ents superexcellent micro-image at any observation.
■Wide-field high eye-point eyepieces and plan achromatic objectives make the
  effect of fluorescence observation more perfect.
  use without feeling tired.
■With the design of security lock and safe limits, it is much more secure, stab-
  le. and can be kept for long.
■Various microscopic examinations can be fulfilled, such as   bright-field, dark-field, phase contrast, fluorescence, simple polarizing and so on.
■LED fluorescenceexcitation illumination, breading through the traditional typ-
  e, is more stable, low radiation and over-length working.

Specifications


EX30
Optical system
Infinity corrected Achromatic optical system
Eyepiece
PL10X/20T plan eyepiece 10X with diopter ±5 adjustable ,field scope 20mm
PL10X/22T   plan eyepiece 10X with diopter ±5 adjustable, field scope 22mm
Objective
OIP infinity plan achromatic objective 4x.10x.20x.40x.100x
Infinity phase contrast objectives10X、20X、40X、100X
Plan Semi-apochromatic fluorescence objectives4X、10X、20X、40X、100X
Viewing head
30°gemel bioncular，Eyepiece tube can rotate 360º,interpupillary distance range：50-75mm
30°gemel trinocular，Eyepiece tube can rotate 360º,interpupillary distance range：50-75mm,fixed spectroscopical ratio R：T=8:2
30°gemel fluorescent trinocular head，Eyepiece tube can rotate 360º,interpupillary distance range：50-75mm,fixed spectroscopical ratio R：T=5:5
Filter
Fluorescence filter:B1/B4/G1//UV2
Nosepiece
Reversed quintuple nosepiece
Reversed quadruple nosepiece
Stage
150x140mm mechanical stage with underhand，76X50mm moving range，precision 0.1mm,damping clips
Condenser
N.A.1.25 Koehler illuminator condenser group (with socket for phase contrast , dark-field device)
Focus adjustment
Coarse focusing scope is 30mm，with tightness adjustment and place limit set, fine adjustment precision：0.002mm
Reflection illumination system
LED reflection illumination, single-band filter with corresponding LED module inside, intensity adjust knob, BF/FL switching knob
Transmission illumination system
100V-240V fluctuate of voltage，Single high brightness 3W LED（predetermine filament center），adjustment of brightness
100V-240V fluctuate of voltage，Philips 6V/30W halogen lamp（pre-set filament center），adjustment of brightness
CCD Adapter
1xCTV,0.5xCTV,0.35xCTV,3.2x photo ocular, photo tube（with PK mount or MD mount）、C-mount, relay lens
Other accessories
Dark-field accessories, phase contrast accessories, polarizer/analyzer
