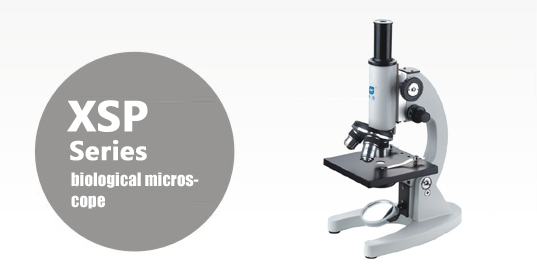

SM30409 XSP series biological microscope



■ 185MM plan achromatic objective 4X/0.1,10X/0.25,40X(S)/0.65,100X(S,Oil)/1.25
■ Eyepiece tube, focusing drawtube and stage are made of excellent alloy
   material
■ Triple nosepiece and Quadruple nosepiece for option
■ Focusing system with rack stop and damp device
■ Each set with a standard wooden case for keep and carry

Specifications

Objective
Achromatic objective 4X、10X、40X，100X
Eyepiece
Huygens eyepiece H5X、H6X、H10X、H12.5X、H15X、H16X
Wide field eyepiece WF10X18、WF15X13、WF20X10
Focusing drawtube and stand
Drawtube lift and arm stand,with rack stop and skid device
Drawtube lift and arm stand,with rack stop and skid device (Abbe condenser can be mounted)
Nosepiece
Triple nosepiece
Quadruple nosepiece
Stage
110X120mm plan stage
115X125mm mechanical stage
Accessories of stage
Clips
Moveable specimen holder,moving range: 60mmX30mm
Diaphragm
Disc diaphragm
Iris diaphragm, with filter holder.
Condenser
N.A.0.65 single condenser
N.A.1.25 Abbe condenser
Illumination
φ50mm mirror
Attachable light 220V20W, tungsten bulb
