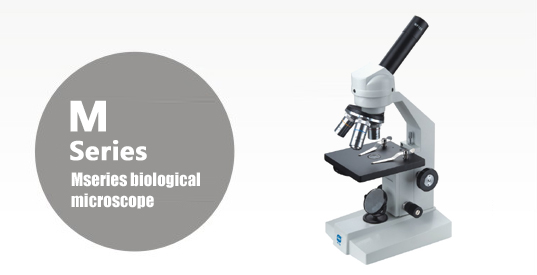

SM30408 M series biological microscope



■ 195 achromatic objective,mechanical tube length 160mm
■ Widefiedl WF10x/18mm eyepiece, pointer and reticle options
■ Monocular or binocular head,inclined at 45 degrees and rotating
■ Separate or coaxial coarse and fine focusing adjustment
■ Triple or quadruple nosepiece
■ 110mmx120mm plan stage and coaxial mechanical stage options
■ N.A.0.65 fixed condenser and disc diaphragm
   N.A1.25 focusable Abbe condenser and iris diaphragm
■ φ42mm plano-concave mirror；230V20w tungsten lamp；3pcs/4pcs LED la
    mp

Specifications


Objective
Achromatic objectives 4X、10X、40X(s)、100X(s)
Eyepiece
Widefield WF10X/18mm, pointer and reticle options
Widefield WF16X/14mm
Widefield WF20X/10mm
Observation tubes
Monocular head, inclined 45 degrees and rotating
Dual viewing head, inclined 30 degrees and rotating
Binocular head,inclined 45 degrees and rotaing with diopter control
Monocular digital head(2 million pixels), inclined 45 degrees and rotaing
Nosepiece
Triple nosepiece
Quadruple nosepiece
Focusing adjustment
Separate coarse and fine focusing adjustment
Coaxial coarse and fine focusing adjustment
Illumination options
φ42mm plano-concave mirror and fork
Main supply 115v or 230v ,tungsten 20w lamp
LED illumination
Stage
110 x 120mm metal plan stage
115mm x 125mm coaxial mechanical stage
Condenser
inclined 45 degrees and rotaing
N.A1.25 focusable Abbe condenser and iris diaphragm
Other options
Mechanical stage,simple polarization
