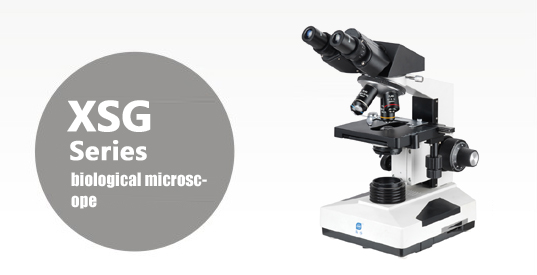

SM30407 XSG series biological microscope



■ Provide high quality optical system and durable and reliable operation
   mechanism
■ Eyepiec and objective have each achromatic aberration system
■ Good quality image,higer resolution ratio,wide clear range
■ This microscope can be used in teaching and laboratory in colleges and
   university,as well as R＆D institution

Specifications


Observation tube
Binocular head,45°inclined and rotating
Binocular head , 45°inclined and rotating, 55~75mm interpupillary distnace，±5 degrees diopter control
Binocular head , 30°inclined and rotating, 54~75mm interpupillary distnace，±5 degrees diopter control
Trinocular head , 30°inclined and rotating, 54~75mm interpupillary distnace，±5 degrees diopter control
Digital head, 30°inclined and rotating
Eyepiece
wide field eyepiece WF10X/18，（option pointer and micrometer）
WF15X/13mm，WF20X/10mm
Objective
Achromatic objective 4X、10X、20X、40XS、100XSO
Plan achromatic objective 4X、10X、20X、40XS、100XSO
Nosepiece
Quadruple backward nosepiece
Focusing adjustment
Low position coaxial coarse and fine focusing adjustment,with up limited and tension ajustment.coarse adjustment travel range:22mm,fine adjustment precision:0.002mm
Stage
Coaxial mechanical stage in 140X132mm size and 76×50mm travel range
Condenser
N.A.=1.25 ABBE condenser and iris diaphragm,with filter holder
Illuminator
Built-in transformer, 6V/20W halogen lamp with intensity control
Photography adapter
3.2x photo eyepiece ,photo tube（with PK mount）
Video adapter
0.35X CTV
0.5X CTV
1X CTV
