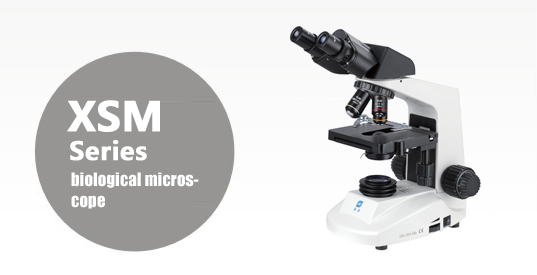

SM30406 XSM series biological microscope



■ Eyepiec and objective have each achromatic aberration system.
■ Good quality image,higer resolution ratio,wide clear range
■ Ergonomic design with low position adjustment
■ Provide high quality optical system and durable and reliable operation
   mechanism; cost-effective
■ This microscope can be used in teaching and laboratory in colleges and
   university,as well as R＆D institution.

Specifications


Eyepiece
High eyepoint wide field eyepiece WF10X/18，（option pointer and micrometer）
wide field eyepiece WF15X/13 、WF 20X/10
Objective
Achromatic objective4X、10X、40X、100X
Plan objective 4X、10X、40X、100X
Observation tube
Monocular head ,45°inclined and rotating
Binocular head,45°inclined and rotating
Trinocular head,45°inclined and rotating
Binocular head,30°inclined and rotating
Trinocular head,30°inclined and rotating
Focusing adjustment
Coaxial coarse and fine focusing adjustment,with limited and tension ajustment.coarse adjustment travel range:22mm,fine adjustment precision:0.002mm
Nosepiece
Triple nosepiece
Quadruple nosepiece
Stage
Coaxial mechanical stage in 140X130mm size and 50X75mm travel range
Accessory for stage
Press style clips
attachable mechanical stage in 60mmX30mm travel range
Condenser
N.A.0.65 single lens condenser
N.A.=1.25 ABBE condenser and iris diaphragm,with filter holder
Illuminator
Mail supply 90-240V adaptable，6V20W halogen lamp with intensity control
Externally transformer, 12V15W halogen lamp with intensity control
LED lamp，with intensity control
Filter
Blue /yellow /green
