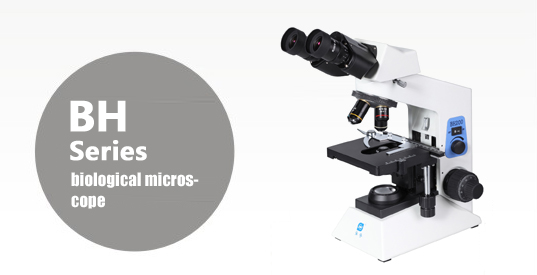

SM30404 BH series biological microscope

■ New chromatic correction optical system
■ Popularly and newly microscope body design
■ Higher level resolution ratio and image quality
■ Designed to be used in teaching applications,lab,demical, and sientific reserch

Spesifications

Optical system
l Finity optical system
linfinity optical system
Observation tubes
lBinocular head,inclined 30 degrees and rotating
lTrinocular head with light splits 80%:20%
54-75mm interpupillary distance，±5 degrees diopter control
eyepiece
lPL10X/18mm, High eyepoint ,widefield plan eyepiece
l PL10X/20mm, High eyepoint ,widefield plan eyepiece
objective
lFinity high contrast achromatic objective:4X、10X、40XS、100XSO
lFinity plan achromatic objective:4X、10X、20X、40XS、100XSO
lInfinity plan achromatic objective: 4X、10X、20X、40XS、100XSO
Nosepiece
Quadruple/quintuple with click stop
Focusing adjustment
Coaxial coarse and fine focusing adjustment,with limited and tension adjustment,coarse adjustment range: 28mm，fine adjustment precision：0.002mm
Stage
llow position coaxial mechanical stage,size:140x132mm travelrange:76x50mm
l low position coaxial mechanical stage,size: 150x140mm travel range:76x50mm ,with two sets clips
Condenser system
lCritical illumination,rack & Pinion focusable 1.25NA Condenser,fixed center
l Koehler illumination, rack & Pinion focusable 1.25NA Condenser,adjustable center
Illuminator
lVariable voltage 90V～240V，halogen 6V/20W with intensity control
lVariable voltage 90V～240V， 3W LED lamp with intensity control
Photography adapter
3.2x photo eyepiece ,photo tube（with PK mount）
Video adapter
l0.35X CTV
l 0.5X CTV
l 1.0X CTV
Other options
l Phase contrast sliders for condenser（use with phase contrast objective）
lDark field slider for condenser
lSimple polarization (with analyser and polarizer)
