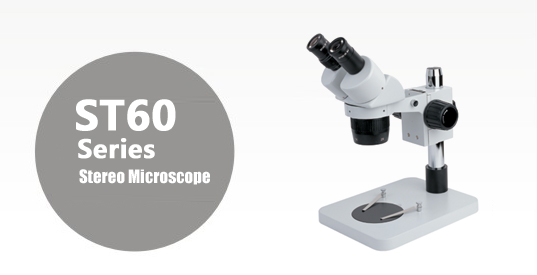

SM30505 ST60 Series Stereo Microscope

Good image quality, high resolution, large depth of field, wide field of view.
Long working distance, comfortable and easy to operate
Provide high-quality optics system and reliable operating mechanism.
Complete accessories, a variety of portfolio allocation, to meet modern biology, medicine, scientific research and online inspection in modern electronics industry.

■ Optical components coated with a special coating, form a clear and bright
    image in the field of view
■ Shift objectives 2X/4X, 1X/2X, 1X/3X for selection
■ Standard magnification 20X/40X, if use auxiliary lens and other times eyepiece,
    the magnification range can be 5X ~ 160X
■ Standard working distance is 100mm, to create enough space for the uses
■ 10X wide field eyepieces, FOV 20mm, high eye-point design, more suitable for
    search and observation
■ Observation head 45 ° inclined, diopter adjustment in two tubes, easy to
    operate and feel no fatigue when long time use.
■ Vertical hand wheel, high repeatability precision
■ Best eye-point height, to ensure that different vision of the user can get a clear

Specifications



Magnification
Standard:20X/40X, using optional eyepiece and auxiliary lens, it can extend to 5X~160X
Objective
1X、2X、3X、4X
Eyepiece
Wide field and high eyepiont eyepiece WF10X/20mm
Wide field and high eyepiont eyepiece WF15X/15mm
Wide field and high eyepiont eyepiece WF20X/10mm
Viewing Head
Binocular head, 45°inclined,360°rotatable, inter-pupillary range 54~76mm, both two side diopter adjustment(±5)
Trinocular head, one side light path output  light splitting 100%：0 or 0：100%
Working Distance
Standard:100mm, using optional auxiliary lens can expand to 30mm-165mm
Auxiliary Lens
0.5X/165mm、1.5X/45mm、2X/30mm
Focus arm
tension adjustable, adjust range 50mm
Stand
Pillar type flat stand
Pillar stand with top & bottom illumination. Bottom illuminator: halogen bulb 12V15W( brightness adjustment )， Oblique lighting 12V/15W
Pillar stand with top & bottom illumination. Bottom illuminator: fluorescent bulb 230V/8W ， Oblique lighting 12V/15W
Other type stand, ring light and fluorescent light and fiber light for option.
Photo device
Photo tube（with PK mount），3.2X photo eyepiece
TV device
0.35X/0.5X/1.0X C-mount adapter
Others
Precision measurement platform, dark field condenser, jewelry clip
