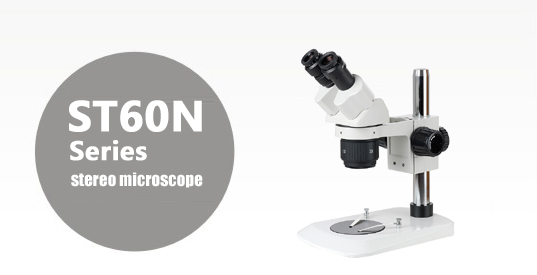

SM30506 ST60N Series stereo microscope
ST60N adopt new optics design, improve the definition of image, better resolution and better contrast. Efficient reduce the user’s fatigue, improve comfort level and operation efficiency.
Innovative integration of video design, it liberates the user’s eyes, inspection
directly through LCD screen, no longer to let the eyes close to the eyepiece.
■ High quality optics system, and optical components coated with special
coating, form a clear, bright and flat image in the field of view
■ Shift objectives 1X/3X、2X/4X、1X/2X、1X/4X for option.
■ Standard magnification 20X/40X, if use auxiliary lens and other times
eyepiece, the magnification range can be 5X ~ 160X
■ Standard working distance is 100mm, to create enough space for the uses
■ 10X large wide field eyepieces, FOV 20mm, plan and high eye-point design,
more suitable for search and observation.
■ Observation head 45 ° inclined, diopter adjustment in two tubes, easy to
operate and feel no fatigue when long time use
■ Ergonomics design, shift hand wheel level (axial) bilateral settings, high
repeatability precision
■ Best eye-point height, to ensure that different vision of the user can get a
clear image
Specifications
|
Magnification
|
Standard:20X/40X, using optional eyepiece and auxiliary lens, it can extend to 5X~160X
|
|
Objective
|
1X、2X、3X、4X
|
|
Eyepiece
|
Wide field and high eyepiont eyepiece WF10X/20mm
|
|
Wide field and high eyepiont eyepiece WF15X/15mm
|
|
|
Wide field and high eyepiont eyepiece WF20X/10mm
|
|
|
Viewing Head
|
Binocular head, 45°inclined,360°rotatable, inter-pupillary range 54~76mm, both two side diopter adjustment(±5)
|
|
Trinocular head, one side light path output light splitting 100%：0 or 0：100%
|
|
|
LCD head,8 inch LCD screen, resolution 800*600,CCD 520 TVLINES
|
|
|
Working Distance
|
Standard:100mm, using optional auxiliary lens can expand to 30mm-165mm
|
|
Auxiliary Lens
|
0.5X/165mm、0.75X/105mm、1.5X/45mm、2X/30mm
|
|
Focus arm
|
tension adjustable, adjust range 50mm
|
|
Stand
|
Pillar type sector stand
|
|
Pillar stand with top & bottom illumination. Bottom illuminator: halogen bulb 12V15W( brightness adjustment )， Oblique lighting 12V/15W
|
|
|
Pillar stand with top & bottom illumination. Bottom illuminator: fluorescent bulb 230V/8W ， Oblique lighting 12V/15W
|
|
|
Other type stand, ring light and fluorescent light and fiber light for option.
|
|
|
Photo device
|
Photo tube（with PK mount），3.2X photo eyepiece
|
|
TV device
|
0.35X/0.5X/1.0X C-mount adapter
|
|
Others
|
Precision measurement platform, dark field condenser, jewelry clip
|
|
