YOUR location:home->brand
Brand

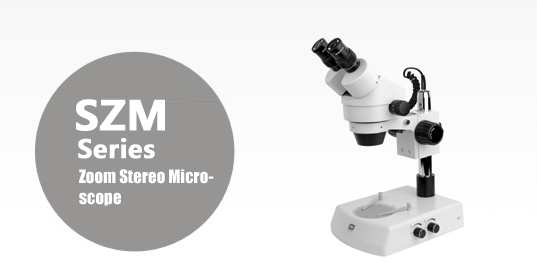

SM30508 SZM Series Zoom Stereo Microscope
High quality optical performance, various accessories and diversified combination specification. To meet high-precision requirements on modern biology, medicine, scientific research, inspection lines in modern electronics and other technology industries
■ High quality optical system, and optical components coated with special
coating created a high-quality optical system.
■ Standard magnification 7X~45X. Use optional auxiliary lens, the magnification
can be 3.5X~180X
■ Long working distance to create enough space for the uses
■ Suit to ergonomic design, feel less fatigue when long time use
Specifications
|
Eyepiece
|
Wide field high eyepiont eyepiece WF10X/20mm（can mount micrometer）
|
|
Wide field high eyepiont eyepiece（can mount micrometer）
|
|
|
Wide field high eyepiont eyepiece WF20X/10mm（can mount micrometer）
|
|
|
Viewing Head
|
SZM7045：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5)
|
|
SZM-7045TR trinocular head, 45° inclined, 360°rotatable, can mount TV apater
|
|
|
SZM-7045V digital head, built-in 450 thousand pixels CCD, 480 TVLINES
|
|
|
Auxiliary Lens
|
0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm.
|
|
Focus
|
SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm.
|
|
SZA2 industry bound focus arm 1 (industry exclusive use)
|
|
|
SZA3 industry bound focus arm 2 (industry exclusive use)
|
|
|
Stand
|
SZMST1 pillar type plain stand
|
|
SZMST2 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment).
|
|
|
SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness
|
|
|
SZSTL1 single arm universal stand
|
|
|
SZSTL2 double arm universal stand
|
|
|
Other light source
|
Ring light/LED/Fiber
|
|
Photo device
|
Photo tube（with PK mount），4X photo eyepiece
|
|
TV device
|
0.35X/0.5X/1.0X C-mount adapter
|
|
Others
|
Precision measurement platform, dark field condenser, jewelry clip
|
|
