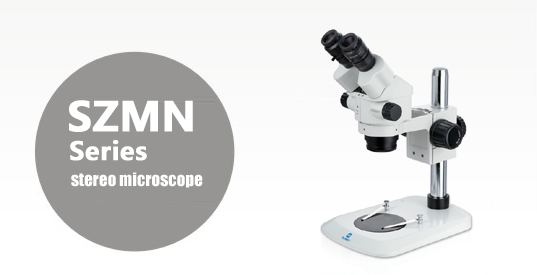

SM30509 SZMN Series Zoom Stereo Microscope



New structural design, more compact and flexible, more comfortable operating
and more widely used.
Large zoom ratio, high resolution and larger clear range.
Full-featured, cost-effective, the best choose for the inspection in modem
electronics industry .

■ High quality optical system, and optical components coated with special
   coating, created a high-quality optical system
■ Standard magnification 7X~45X. Use optional auxiliary lens, the magnification
   can be 3.5X~180X
■ Long working distance to create enough space for the users
■ Suit to ergonomic design, feel less fatigue when long time use

Specifications


Eyepiece
Wide field high eyepiont eyepiece and diopter adjustment eyepiece WF10X/20mm、WF15X/15mm、WF20X/10mm（can mount micrometer）
Viewing Head
SZMN7045：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5)
SZMN7045：Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5)
SZMN645: Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece)
SZMN645：Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece)
DVSZMN645: Digital head with LCD screen. 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) 8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES
Auxiliary Lens
0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm.
Focus
SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm.
SZMNA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm.
SZA2 industry bound focus arm 1 (industry exclusive use)
SZA3 industry bound focus arm 2 (industry exclusive use)
Stand
B4 pillar type sector plain stand
SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness
SZSTL1 single arm universal stand
SZSTL2 double arm universal stand
Other light source
Ring light/LED/Fiber
Photo device
Photo tube（with PK mount），4X photo eyepiece
TV device
0.35X/0.5X/1.0X C-mount adapter
Others
Precision measurement platform, dark field condenser, jewelry clip
