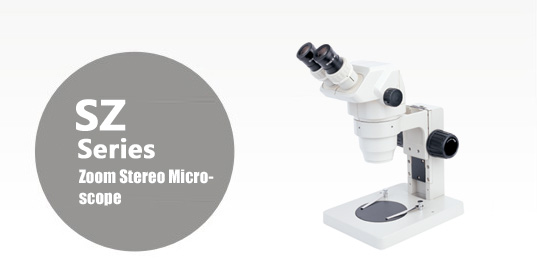

SM30510 SZ Series Zoom Stereo Microscope



Complete accessories and diversified combination specification. To meet
high-precisionrequirements on modernbiology, medicine, scientific
research, inspection lines in modernelectronicsand other technology
industries

■ High quality optical components coated with special film, created a high-
   quality optical images.
■ Formed flat and good contrast image, especially in the peripheral visual
   field, it is more bright and clear.
■ Zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~
   45X. Use optional auxiliary lens, the magnification can be 2X~225X.
■ The standard working distance is 100mm, use optional auxiliary lens,
   the working distance can extend to 26mm~287mm, to create enough
   space for the user.
■ Viewing head 45°or 60°inclined, diopter adjustment in two tube, ensure
   the different vision of users to get a clear image.
■ Suit to ergonomic design, the best height of the eyepoint, uses feel less
   fatigue when long time use.
■ The zoom hand wheel (axial) bilateral settings, easy operation, high
   precision zoom repeat.
■ A variety of accessories, expanding the application areas

Specifications


Eyepiece
Wide field high eyepiont eyepiece WF15X/16mm（can mount micrometer）
Wide field high eyepiont eyepiece WF20X/12mm（can mount micrometer）
Wide field high eyepiont eyepiece WF25X/9mm
Viewing Head
SZ6745：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5)
SZ9040：Binocular head, 45° inclined, zoom objective 0.9X-4.0X, working distance 100mm.
SZ6745A：Binocular head, 60° inclined, zoom objective 0.67X-4.5X, working distance 100mm.
SZ9040A：Binocular head, 60° inclined, zoom objective 0.9X-4.0X, working distance 100mm.
SZ6745TR：Trinocular head, 45° inclined, zoom objective 0.67X-4.5X, working distance 100mm.
SZ9040TR：Trinocular head, 45° inclined, zoom objective 0.9X-4.0X, working distance 100mm.
SZ6745ATR：Trinocular head, 60° inclined, zoom objective 0.67X-4.5X, working distance 100mm.
SZ9040ATR：Trinocular head, 60° inclined, zoom objective 0.9X-4.0X, working distance 100mm.
Auxiliary Lens
0.3X/ 287mm
0.4X/217mm
0.5X/177mm
0.75X/117mm
1.5X/47mm
2X/26mm
Focus
SZA1focus arm, two focusing knobs are with tension adjustable, adjust range 50mm
SZA2 industry bound focus arm 1 (industry exclusive use)
SZA3 industry bound focus arm 2 (industry exclusive use)
Stand
SZST1 arm type plain stand
SZST2 pillar type large plain stand
SZST3 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment).
SZSTL2 double arm universal stand
SZ-B1 transmitted light base, be used with SZ-ST1
Other light source
Ring light/LED/Fiber
Photo device
Photo tube（with PK mount），4X photo eyepiece
TV device
0.35X/0.5X/1.0X C-mount adapter
Others
Precision measurement platform, dark field condenser, jewelry clip
