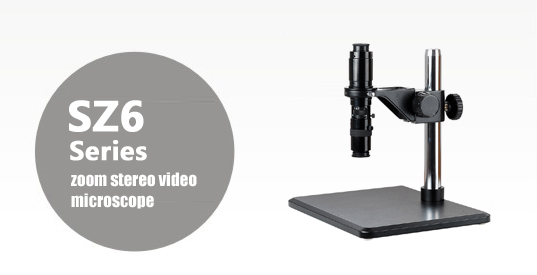

SM30513 SZ6 Series Zoom Stereo Lens



Design for the applications in the fields of machine vision, industrial inspection and scientific research.
Modularization product portfolio, excellent optical performance, SZ6 becomes a better choice for the lens applications in these areas.
■ Compact design, so that all functions are concentrated in a tube, it is very
   suitable for the small installation space in modern equipment.
■ Adopt semi-apochromatic parallel optical imaging system, and use advanced
   multi-layer coating technology, excellently correct the imaging on the edge
   of field of view, to get high-resolution and high contrast images, naturally
   restore the true colors of observed objects.
■ Zoom ratio 1:6.5，zoom range 0.7X-4.5X，standard working distance
   90mm，resolution ratio 63-180lp/mm，to meet the requirement of machine
   vision conventional imaging.
■ There are a variety of auxiliary lens and CCD for option, make the system’s
   maximum magnification up to 0.09X-18X, working distance 37mm-356mm,
   object field of view 0.23mm-91mm
■ Coaxial illumination system, adopt single high brightness 1W LED, color
   temperature 5500K, uniform lighting, suitable for high reflectivity surface
   precision detection, and limited exterior lighting occasions
■ Various additional functions for option.

Specifications


Zoom lens
SZ6D zoom objective:0.7-4.5X
SZ6DF12 zoom objective:0.7-4.5X,with 12mm fine adjustment
SZ6CHI zoom objective:0.7-4.5X,with coaxial light interface
SZ6CHIF3 zoom objective:0.7-4.5X,with coaxial light interface and 3mm fine adjustment
SZ6DP zoom objective:0.7-4.5X, with main ratio positioning mechanism
SZ6CHIP zoom objective:0.7-4.5X, with main ratio positioning mechanism and coaxial light interface
SZ6DF3P zoom objective:0.7-4.5X, with main ratio positioning mechanism and 3mm fine adjustment
SZ6CHIF3P zoom objective: 0.7-4.5X, with main ratio positioning mechanism, coaxial light interface and 3mm fine adjustment.
SZ6DF12P zoom objective:0.7-4.5X, with main ratio positioning mechanism and 12mm fine adjustment
SZ6DMOT zoom objective:0.7-4.5X, motor-driven zoom
SZ6CHIMOT zoom objective:0.7-4.5X, motor-driven zoom, with coaxial light interface
LCD module
DVSZ6：8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES，can mount on any zoom lens
Auxiliary lens
0.25X /356mm
0.5X /170mm
0.75X /113mm
1X /90mm
1.5X /52mm
2X /37mm
C-mount adapter
0.5X C-mount adapter
0.67X C-mount adapter
1X C-mount adapter
1X C-mount adapter（fixed）
1.33X C-mount adapter
2X C-mount adapter
Coaxial light
Light source: single LED 1W  5500K
Wide-range voltage 90V-250V,1W LED controller, brightness adjustment
Motor control module
Motor monocular control panel
Control software disk
USB2.0 connecting line
24V/2A desktop external power supply
Stand and focus arm
B4 Pillar type plain stand
Focus arm
Adapter for focus arm
