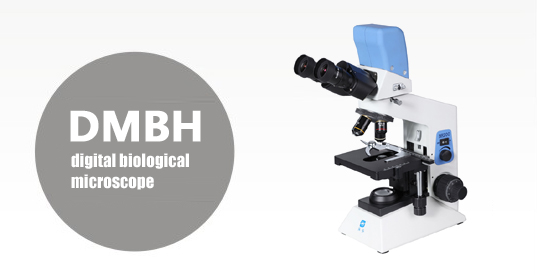

SM30311 DMBH digital biological microscope

The system combined traditional microscopy education with modern network technology and multi-media technique. With high-quality “SUNNY” microscopes, server and computers, an interactive multi-media audio bilateral network system was founded. It shows several clear pictures at the same time and has a lot of methods to realize interaction.

■ New chromatic correction optical system

■ Popularly and newly microscope body design

■ Higher level resolution ratio and image quality

■ Designed to be used in teaching applications,lab,demical, and sientific

reserch

Spesifications

Optical system	Finity optical system/Infinity optical system
Observation tubes	30°gemel digital viewing head, 3.2 million pixels high resolution camera system：resolution ratio 2048*1536 pixels ,line by line scan
Observation tubes	Automatic exposure and white balance function.USB2.0 digital output. Display 90% image from field of view
Eyepiece	PL10X/18mm, High eyepoint, widefield plan eyepiece PL10X/20mm, High eyepoint, widefield plan eyepiece
Objective	Finity high contrast achromatic objective:4X、10X、40XS、100XSO Finity plan achromatic objective:4X、10X、20X、40XS、100XSO Infinity plan achromatic objective: 4X、10X、20X、40XS、100XSO
Nosepiece	Quadruple/quintuple with click stop
Focusing adjustment	Coaxial coarse and fine focusing adjustment, with limited and tension adjustment, coarse adjustment range: 28mm，fine adjustment precision：0.002mm
Stage	Low position coaxial mechanical stage,size:140x132mm travel range:76x50mm Low position coaxial mechanical stage, size: 150x140mm travel range:76x50mm ,with two sets clips
Condenser system	Critical illumination, rack & Pinion focusable 1.25NA Condenser, fixed center Koehler illumination, rack & Pinion focusable 1.25NA Condenser, adjustable center
Illuminator	Variable voltage 90V～240V，halogen 6V/20W with intensity control Variable voltage 90V～240V， 3W LED lamp with intensity control
Photography adapter	3.2x photo eyepiece ,photo tube（with PK mount）
Video adapter	0.35X CTV/0.5X CTV/1.0X CTV
Other options	Phase contrast sliders for condenser（use with phase contrast objective） Dark field slider for condenser Simple polarization (with analyser and polarizer)
