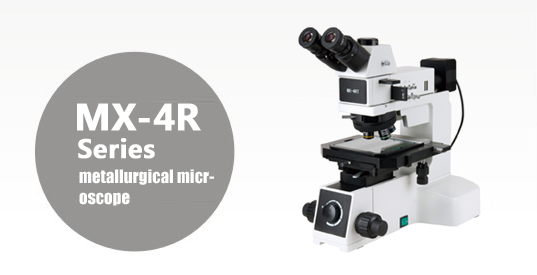

SM30351 MX-4R series Metallurgical Microscope



Flexible system, excellent imaging performance and stable system architecture.MX-4R series professional used in industrial testing and metallographic analysis.
The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble. MX-4R integrated bright-field,oblique illumination,polarizing, DIC differential interference and other observed functions,according to the practical application of functional selection.

■MX-4R can achieve X, Y directions 105mmx105mm range of movement.

  e , high power objective designed with semi-apochromatic technology.
■Under a variety of observation methods can be sharp andhigh-contrast microsco-
  pic image.
■Accessories complete, well-equipped, the system can be flexibly combined
  with  the functional expansion.
■Ergonomic design, reliable system architecture.

Specifications


Model No
MX-4R
MX-4RT
Alternative method of observation
Bright field/Oblique illumination/polarizing/DIC
Bright field/Oblique illumination/polarizing/DIC /Transmission light
Optical system
Infinity color corrected optical system
Eyepiece
Hight eyepoint plan eyepiece PL10X/22
Viewing head
30°inclined gemel trinocular，reflect rate，binocular：trinocular=100：0或50:50
objective
LMPL infinity LWD Metallurgical objective 5X、10X、20X、50X、100X
Nosepiece
Reversed quintuple nosepiece，with DIC slot
Stage
4” mechanical stage，moving range 105x 105mm，with metal plate，right hand positionX、Y moving hand wheel，the platform with interface
4” mechanical stage，moving range 105x 105mm，with glass plate, right hand positionX、Y moving hand wheel，the platform with interface
Body
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in wide voltage 90V-240V, single power supply output
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in wide voltage 90V-240V, dual power supply output
Reflective illumination System
With iris diaphragm and aperture diaphragm, both centers adjustable,with filter slot and polarizing device slot, switch rod with oblique lighting. Single high-power5W LED, white, light intensity continuously adjustable
With iris diaphragm and qperture diaphragm,both centers adjustable,with filter slot and polarizing device slot, switch rod with oblique lighting.。12V100W halogen bulb，light intensity continuously adjustable (when selecting this group of lighting devices, use MX-6R-type microscope body)
Transmission illumination system
/
Single high-power 5W LED, white, light intensity continuously adjustable. N.A.0.5 condenser with iris aperture diaphragm

■The new design of the long working distance professional metallurgical objectiv-
