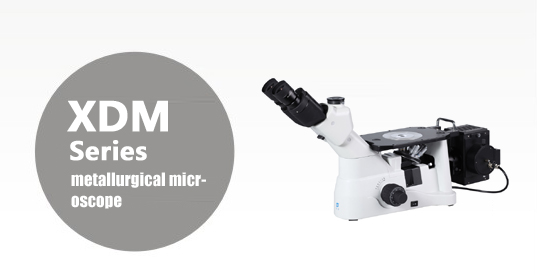

SM30354 XDM series Metallurgical Microscope



Provide superior image and reliable mechanical structure；
Easy operating，various of accessories, widely used in teaching and research metallographic analysis and facility materials testing

■ Optical system：Infinity color corrected optical system（CSIS），better
   image，higher resolution, more comfortable observation;
■ Eyepiece and Objective：high eyepoint widely plan eyepiece PL10x/22mm provid
   e more widely and plan observation space and can be installed various of micro
   meter. Professional infinity plan achromatic LWD metallurgical objective, no
   cover glass design.
■ Viewing head：Gemel trinocular head diopter adjustable 45°inclined，can photo
   graph and image pickup，can collect and preserve the image, also can analysis
   the image with computer and specialized software.
■ Focus：Low hand position coaxial coarse and fine focusing mechanism，with
   coarse tension adjustment device，Coarse adjustment range 38mm，precision
   of fine adjustment 0.002mm。
■ Illuminator system：Reflection Koehler illuminator with iris diaphragm and center
   able filed diaphragm, wide voltage 90-240V ，12V/50W imported halogen bulb，
   effectively protect and extend the life of halogen bulb.
■ Stage：can be setting coaxial low hand position removable stage and the stage
   extension plate, expand the application space, to meet the different needs of cus
   tomers

Specification：


Optical system
Infinity color corrected optical system
Viewing head
Gemel trinocular head 45°inclined, Interpupillary distance adjustable between：54-75mm，diopter adjustment ±5, refract rate:binocular 100%，binocular:trinocular=80%:20%

Eyepiece
High eyepoint widely field plan eyepiece PL10X22mm
High eyepoint widely field plan eyepiece镜PL15X/16mm
Objective
Infinity LWD plan achromatic metallurgical objective:
LMPL5X /0.15 /WD10.8     LMPL10X/0.3 /WD10     LMPL20X/0.45 /WD4
Infinity LWD plan semi-apochromatic metallurgical objective:
LMPLFL50X/0.55 /WD7.8   LMPLFL100X/0.80 /WD2.1
Nosepiece
Reversed quintuple nosepiece
focus
coaxial coarse and fine focusing mechanism，coarse range:38mm per rotation,fine range：0.2 mm per rotation，fine precision：0.002mm，with coarse tension adjustment device
stage
Fixed stage, Size 160X250mm
plate
Metal plate（center holeΦ12）/Metal plate（center holeΦ25）/  the stage extension plate
Movable
coaxial low hand position removable stage，moving range 120x78mm
Reflective illumination System
Reflection Koehler illuminator，with iris diaphragm and centerable filed diaphragm, wide voltage 90-240V ，12V/50W halogen bulb，center adjustable light intensity continuously adjustable
Polarizing kit
Polarizer slide
Analyzer slide,360 °rotating
Filter
Φ32mm yellow/green/blue/neutral
Photo accessories
Photo tube（with PK mount），photo eyepiece 3.2X
Video accessories
CTV0.5X/1.0X
