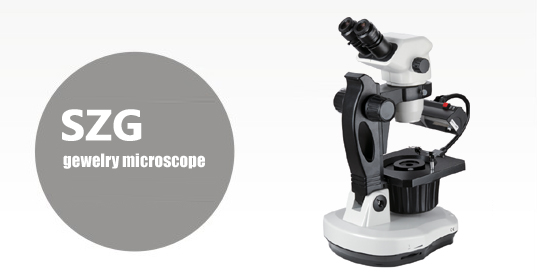

SM30516 SZG Jewelry Microscope



Gerry lvanov optical imaging systems and special jewelry tested microscope stand. Fully meet the appraisal needs of all kinds of diamonds, crystals, gems and other jewelries.

■ Using 1:6.7 zoom optical system，0.67X-4.5X zoom lens，magnification setting
   meet the jewelry appearance observation and the internal fine identification
   needs. Excellent optical system provides more clear ,high contrast, high
   resolution images. Also a better depth of field made the final image has a 3D
   effect.
■ Multi-function stand design, professional jewelry microscope stand, with base
   rotating, adjustable observation angle, body lifting and other functions.Accroding
   to different operating habits and samples can be adjusted freely。
■ varieties of illumination and imaging methods,there are fluorescent and halogen
   illuminator. Can achieve parallel light,oblique light transmitted light and other
   methods. Can fulfill brightfield, darkfield and polarized observation, to analyze
   the composition and properties of Jewelry.

Specifications


Eyepiece
High eyepoint wide field diopter adjustable eyepiece WF10X/22mm（Micrometer can be installed）
High eyepoint wide field diopter adjustable eyepiece WF15X/16mm（Micrometer can be installed）
High eyepoint wide field diopter adjustable eyepiece WF20X/12mm（Micrometer can be installed）
Viewing head
SZN745：binocular head,45°inclined ,zoom objective 0.67X-4.5X,working distance 100mm. Interpupillary distance adjustable between：54-75mm 54mm-76mm,with built-in mechanical interlock,fixed eyepiece tube
SZN745TR：trinocular head,45°inclined ,zoom objective 0.67X-4.5X,working distance 100mm. Interpupillary distance adjustable between：54-75mm 54mm-76mm,with built-in mechanical interlock,fixed eyepiece tube
Auxiliary objective
0.3X/ 287mm
0.4X/217mm
0.5X/177mm
0.75X/117mm
1.5X/47mm
2X/26mm
stand
Coarse range 110mm，Arm can be 0～45°rotated；provide darkfield and brightfield illumination；iris diaphragm with aperture hole adjustable fromφ44mm-φ3mm,wide voltage 110V～220V.
Upper illumination
7W daylight fluorescent bulb
single high power 1W LED，white，light intensity adjustable.
Bottom illumination
6V 30W halogen bulb ，philips 5761，light intensity adjustable.
gem
Wire clips
Plain end clips
Polarizing kit
polarizer/analyzer
Video accessories
CTV 0.35X/0.5X/1.0X
